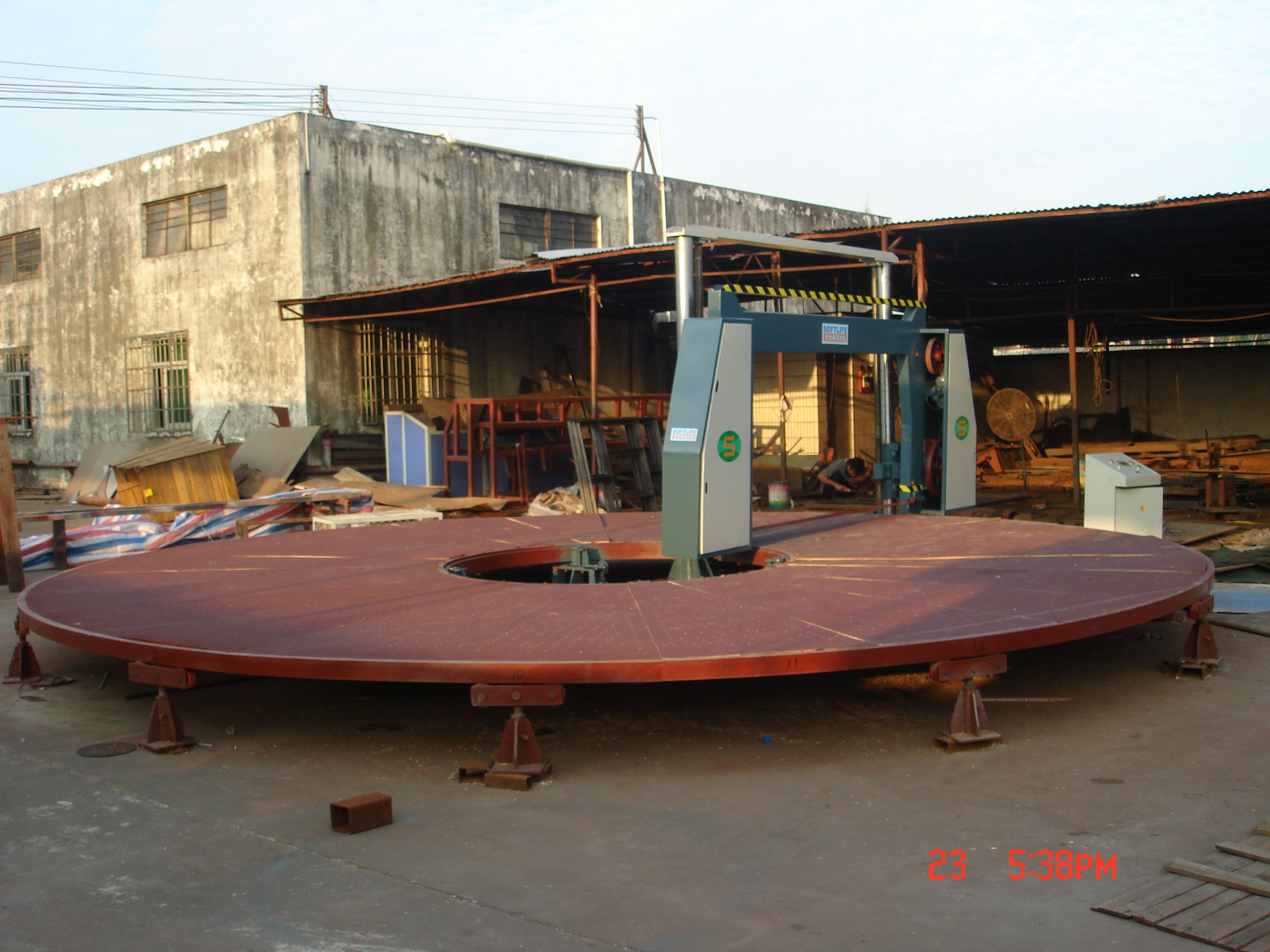

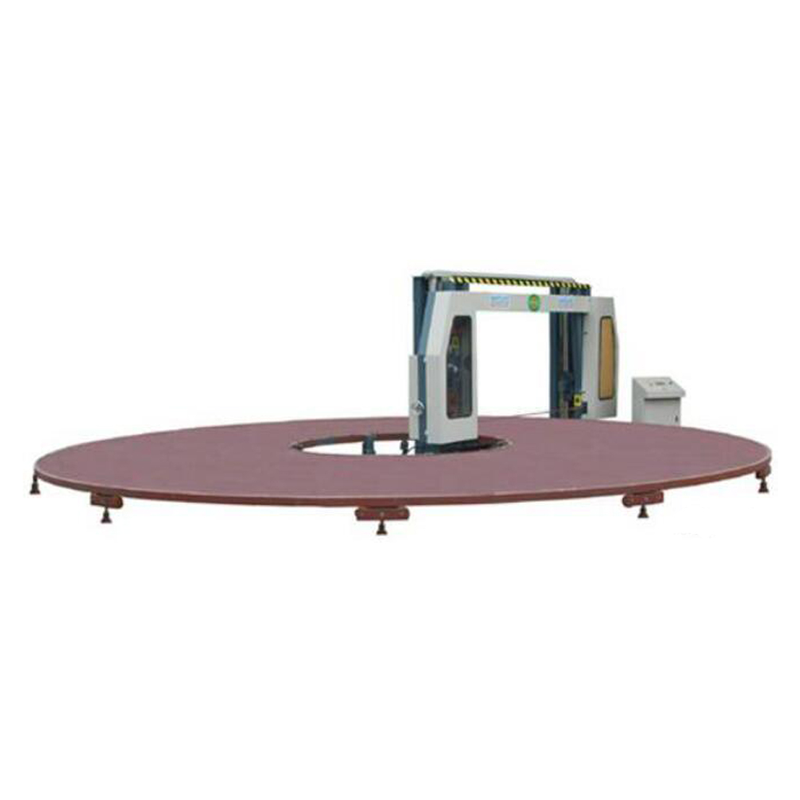

Horizontal Automatic Carrousel Foam Cutting Machine/Round Table Cutting Machine
Horizontal Automatic Carrousel Foam Cutting Machine/Round Table Cutting Machine is mainly used for multi foam block’s horizontal cutting. The cutting is efficient for its continues cutting without move back. And this machine adopts the PLC controller to adjust the cutting thickness and cutting speed. So the simple and precious operation is the characteristic of this machine.
There are 4 air blowers which make the foam steadier.(Suction is optional)
Technical Specification:
Model | SL-RC / SL-RC-F(with suction model) |
Worktable size | Φ7200 mm / 6150mm |
Max cutting height | ≤1200mm |
Max cutting block size | 2m×2m×1.2m |
Length of knife belt | 9900mm |
Table turning speed | ≤3.26rpm |
Cutting thickness | ≥2mm |
Precision | ≤1mm |
Speed | 5 circles/min |
Voltage | 3 Phase AC 380V |
Power | 7kw |
We sincerely welcome friends from home and abroad to visit our company to negotiate the price and procurement further our discussion on the later cooperation.
